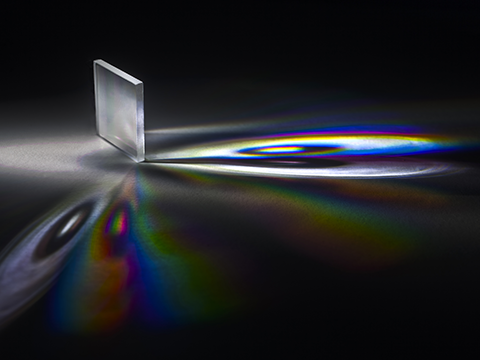

Transmission Grating
600 Groove, UV Transmission Grating, 12.7 mm Sq., 2 mm Thick
G600TU17.5CB
Price:
Call (866) 488-1064 to Order
Grooves Per mm |
600 |
Groove Angle |
17.46° |
|---|---|---|---|
Substrate |
Fused Silica |
Size (mm) |
12.7 mm Sq. |
Size Tolerance |
±0.5 mm |
Thickness |
2 mm |
Thickness Tolerance |
±0.5 mm |
Scratch/Dig |
60/40 |
Clear Aperture |
90% |
Edge Angle |
90° ±0.50° |
Perpindicularity |
90° ±0.50° |
Operating Temperature Range |
-50° C to +125° C |
DT - Pulsed Laser |
350 mJ/cm², 200 nano sec. pulse |
Damage Threshold: CW laser |
40 watts/cm² |
Discount available on bulk orders
Call +1-800-456-7070 or email us for lead time and quantity discounts.
