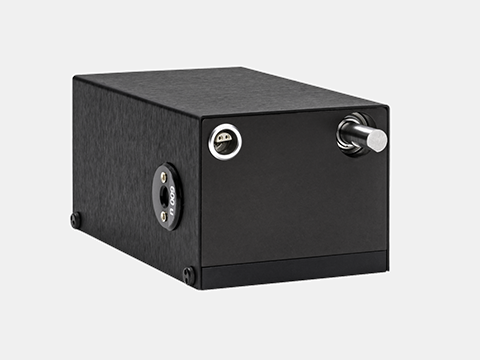

Scanning Mini-Chrom Monochromator
Scanning Monochromator, 500 nm – 1.2 μ
Email sales@omega-optical.com to Order
Operating Range |
500 nm – 1.2 μ |
f Number |
3.9 |
|---|---|---|---|
Focal Length |
74 mm |
Beam Path |
In Line |
resolution-with-50μ-slits |
0.53 nm |
resolution-with-100μ-slits |
1.06 nm |
resolution-with-150μ-slits |
1.59 nm |
resolution-with-300μ-slits |
3.19 nm |
resolution-with-600μ-slits |
6.37 nm |
resolution-with-1-mm-slits |
10.62 nm |
Grating Type |
Ruled |
Grating Density |
1200 grooves/mm |
Grating Blaze Wavelength |
750 nm |
Grating Size |
2 cm2 |
Stray Light |
≤ 0.02% |
wvelength-accuracy |
± 0.2% of λ |
wavelength-reproducibility |
± 0.15% |
Wavelength Readability |
0.2 nm |
Drive Hystersis |
3.6° typical; 14° maximum |
Operating Temperature Range |
-20° C to +80° C |
DT - Pulsed Laser |
350 mJ/cm², 200 nano sec. pulse |
Damage Threshold: CW laser |
40 Watt/cm² |
Dimensions (mm) |
95 L X 59 W X 49 H |
Weight |
0.45 Kg (1.0 lbs.) |
Call +1-800-456-7070 or email us for lead time and quantity discounts.
